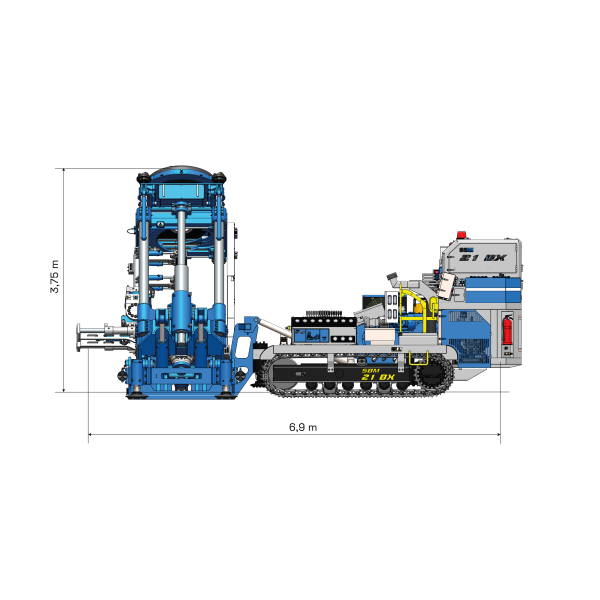

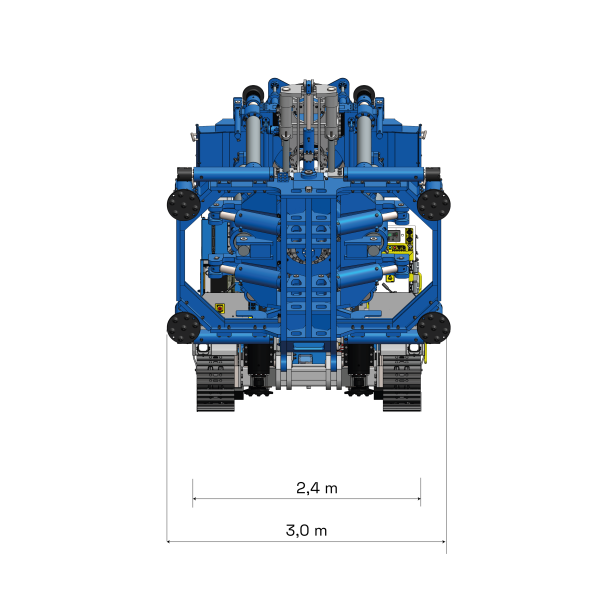

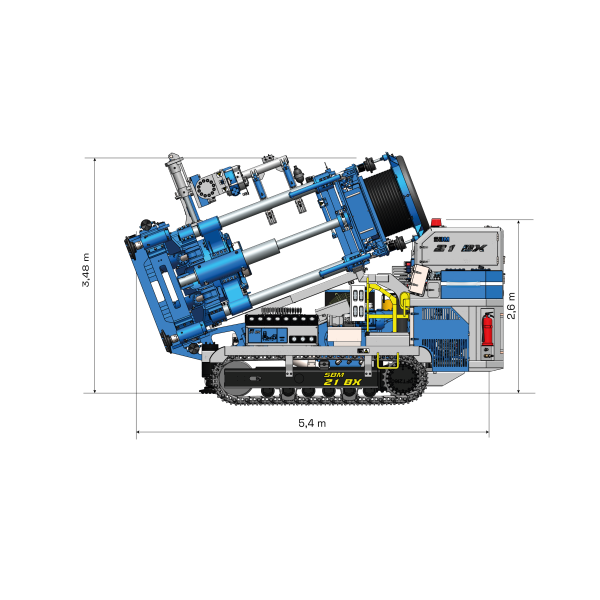

SBM 21 BX
Back to productsSemi-automatic positive drilling machine that requires only two people for complete operation. Transport is remotely controlled. The inclusion of hydraulic cylinders for leveling and securing ensures quick and safe positioning and installation
MAIN MOTOR HORSEPOWER
100hp / 75kW
REAMING THRUST
134,900 lbf / 600 kN
MAXIMUM TORQUE
11,000 lbf-ft / 15 kN-m

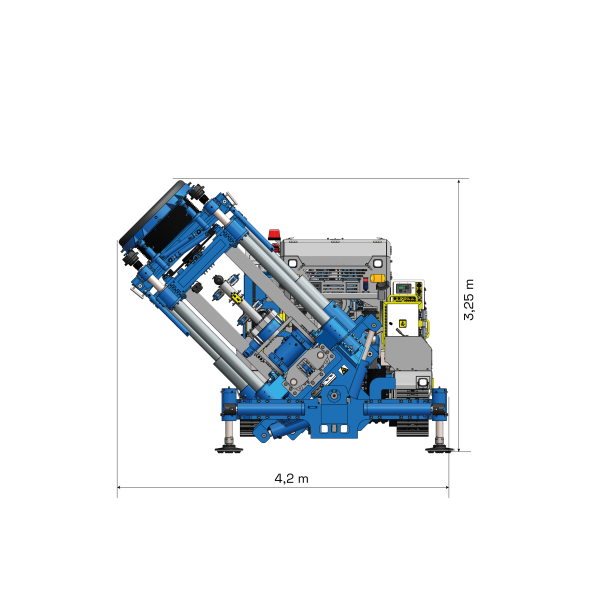

DIP ANGLE ADJUSTMENT
45° - 135°(Lateral)
WEIGHT
57,200 libras / 26,000 kg
DRILL PIPE
Ø10 pulg. X 3 pies / Ø254 mm X 0.91 m
WORKPLACE HEIGHT
15 pies 11 pulg. / 4,850 mm
Related accessories
-
CUTTERS
Our innovative design allows our cutters to cut through rock like no other.
-
DRILL PIPE
Our pipes are resistant to high torques and tensile stresses.
-

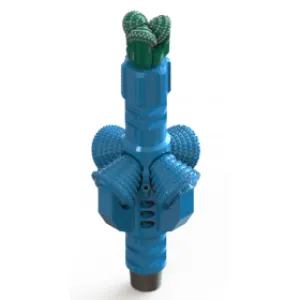

HOLE OPENER
We design and manufacture Hole Openers of different diameters for Box Hole and Down Reaming.
