A semi-automatic machine that only requires two people to operate and features a fully integrated system with hands-free functionality. The SBM 700 SR features an integrated transport track that allows it to move autonomously between jobsites and is integrated into the power unit and control cabinet.

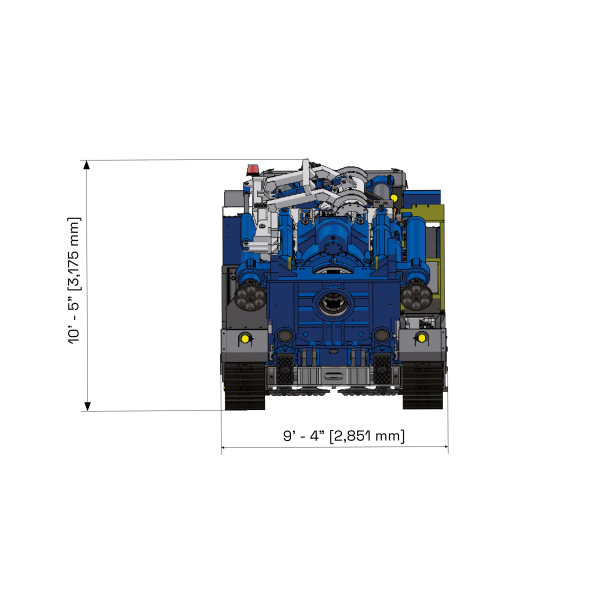

SBM 700 SR-View 1

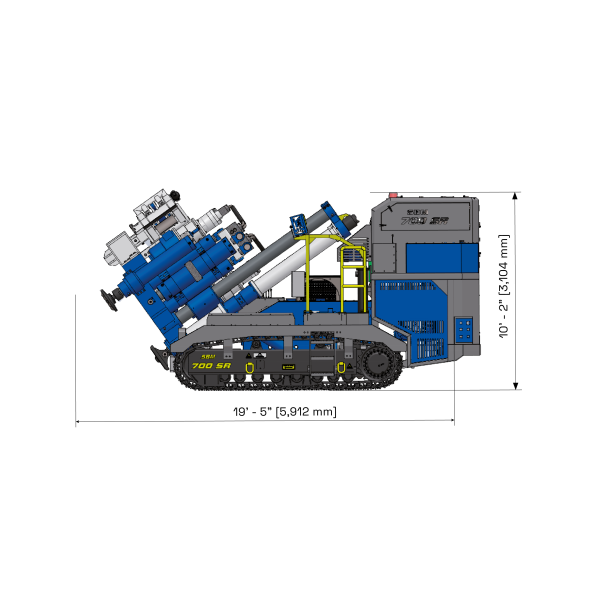

SBM 700 SR-View 2

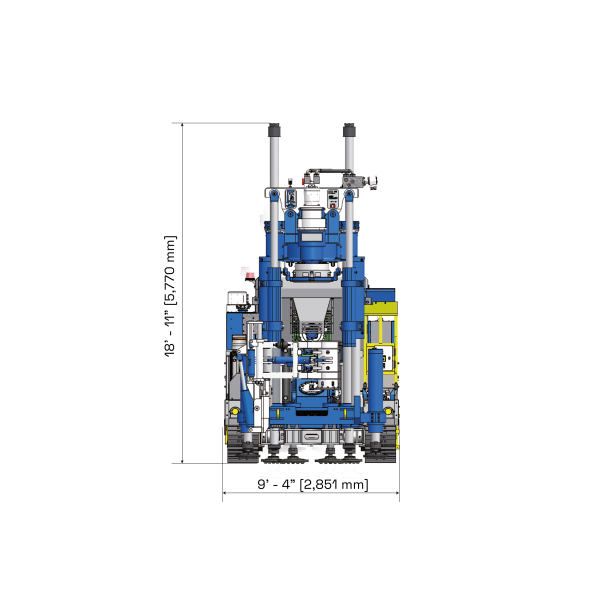

SBM 700 SR-View 3

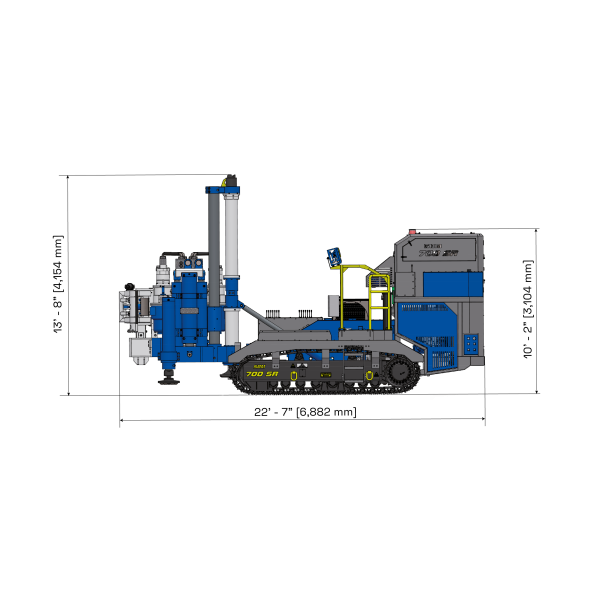

SBM 700 SR-View 4
MAIN MOTOR HORSEPOWER 300hp / 224kW
REAMING THRUST 665,000 lbf / 2,960 kN
MAXIMUM TORQUE 120,335 lbf-ft / 163 kN-m
DIP ANGLE ADJUSTMENT 45° - 90°
WEIGHT 70,000 libras / 31,800 kg
DRILL PIPE Ø10 pulg. X 5 pies / Ø254 mm X 1.5 m
DRILL PIPE Ø11-1/4 pulg. X 5 pies / Ø286 mm X 1.5 m
WORKPLACE HEIGHT 18 pies 8 pulg. / 5,700 mm
